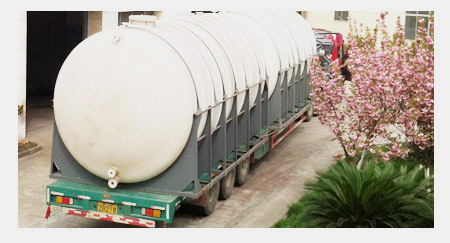

聚乙烯臥式儲罐系列 |
|
|
|
|
|
體積(m3) |
直徑D(mm) |
長度L1(mm) |
長度L2(mm) |
法蘭內徑 |
人孔f |
備注 |
a |
b |
c |
d |
2 |
1250 |
1200 |
2400 |
50 |
50 |
25 |
25 |
400×500 |
|
3 |
1250 |
2300 |
3500 |
50 |
50 |
25 |
25 |
400×500 |
|
5 |
1500 |
2600 |
3300 |
50 |
50 |
25 |
25 |
400×500 |
|
6 |
1500 |
3400 |
4100 |
50 |
50 |
25 |
25 |
400×500 |
|
6 |
1800 |
2200 |
3200 |
50 |
50 |
25 |
25 |
400×500 |
|
8 |
2000 |
2800 |
3500 |
65 |
50 |
25 |
25 |
450 |
|
10 |
2000 |
3200 |
3900 |
80 |
65 |
25 |
25 |
450 |
|
10 |
2300 |
2800 |
4000 |
80 |
65 |
25 |
25 |
450 |
|
12 |
2000 |
3800 |
4500 |
80 |
65 |
25 |
25 |
450 |
|
15 |
2000 |
4800 |
5500 |
80 |
65 |
25 |
25 |
450 |
|
15 |
2300 |
3400 |
4600 |
80 |
50 |
50 |
50 |
450 |
|
20 |
2450 |
4600 |
5200 |
80 |
50 |
50 |
50 |
450 |
|
20 |
2700 |
2850 |
4250 |
80 |
80 |
50 |
50 |
450 |
|
25 |
2700 |
4000 |
5400 |
80 |
50 |
50 |
50 |
450 |
|
30 |
2900 |
4200 |
5400 |
80 |
50 |
50 |
50 |
450 |
|
35 |
2900 |
5000 |
6200 |
80 |
80 |
50 |
50 |
450 |
|
40 |
3200 |
4800 |
5800 |
80 |
80 |
50 |
50 |
450 |
|
45 |
3200 |
5500 |
6500 |
80 |
80 |
50 |
50 |
450 |
|
50 |
3200 |
5900 |
6900 |
80 |
80 |
50 |
50 |
450 |
|
|
|
|
